Featuring a sleek anodized surface and painted finish, this black aluminum extrusion offers corrosion resistance and modern aesthetics for architectural or industrial use.
Material & Temper :
Custom Aluminum Alloy with Heat TreatmentApplication :
Architectural, Decorative Home and Industrial Aluminum ProfilesLead time :
10 to 30 daysExecutable Quality Standard :
GB5237, TS16949, EN12020, EN755, EN573, Or according to customer agreement standardsSurface Treatment :
Anodized PaintedColor :
BlackPackaging method :
Customized according to customer requirements
Black anodized aluminum extrusion has become a signature material for contemporary engineers and architects who require uncompromising durability and a refined visual statement. By combining electrolytic anodizing with a premium matte black powder coat, the profile gains a dense oxide barrier and a stylish, non‑reflective surface that remains color‑stable in harsh UV and coastal climates.
Our anodized black aluminum profile begins with high‑purity 6063‑T5 billets. They are precision‑extruded through CNC‑cut dies under strict thermal control, creating profiles with uniform grain and minimal distortion. Immediately after extrusion, each bar undergoes multi‑stage alkaline & acid cleaning, anodizing, colouring and sealing, forming a 10‑15 µm oxide film. A fully automated powder booth then applies an environment‑friendly matte black resin that is oven‑cured for superior adhesion. The result is a durable black aluminum extrusion that marries structural integrity with luxury aesthetics. This dual‑protected surface tolerates marine fog, industrial fumes and daily abrasion, making the profile indispensable for curtain‑wall grids, display systems, server racks and bespoke furniture trims. Its understated deep‑black hue coordinates effortlessly with glass, wood or stainless steel, elevating both exterior façades and interior décors.
This black anodized aluminum extrusion catalog supports rapid prototype runs as small as 30 kg per size and scales seamlessly to container‑load volumes, making it ideal for both niche fabricators and multinational contractors.
| Item | Details |
| Alloy & Temper | Al 6063‑T5 (6005, 6061 available on request) |
| Surface Treatment | Anodizing ≥10 µm + Matte Black Powder Coat ≥60 µm |
| Standard Colour | Matte Deep Black (custom RAL / Pantone tones) |
| Length Options | 6 m standard | Cut‑to‑size 50 mm – 6000 mm |
| Wall Thickness | 0.8 mm – 5 mm (±0.05 mm tolerance) |
| Linear Tolerance | ±0.2 mm / m; Twist ≤1 mm / m |
| Secondary Services | Precision cutting, drilling, tapping, CNC milling, kitting, custom packing |
| Typical Industries | Architecture, Electronics, Furniture, Machinery, Rail & Display |
The design of this durable black aluminum extrusion balances performance and brand‑level aesthetics—ideal for projects where colour consistency and surface purity are mission‑critical.
| Common Problems | Solution Provided by Black Anodized Extrusion |
|---|---|
| Coating peel & UV fade after one season | 60 µm thermoset powder coat chemically anchored to anodic layer for lifetime adhesion |
| Corrosion in seaside or chemical zones | Anodic barrier (10 µm) blocks chloride ions; powder top‑coat repels acid & alkali |
| Assembly delays from dimension variance | Precision dies + laser inline gauges keep ±0.05 mm tolerances |
| Batch color mismatch between deliveries | Spectro control and retained samples assure ΔE≤1 ensuring façade uniformity |
| Small‑lot proto & large‑scale ramp‑up conflict | Flexible press schedule: 1×20 kg sample → 50 t/month serial supply |
| ESG & recyclability compliance | RoHS chemistry; ≤5 % scrap; closed‑loop recycling documentation |
By uniting minimalistic aesthetics with industrial durability, black anodized aluminum extrusion has become the go‑to material across these demanding sectors.

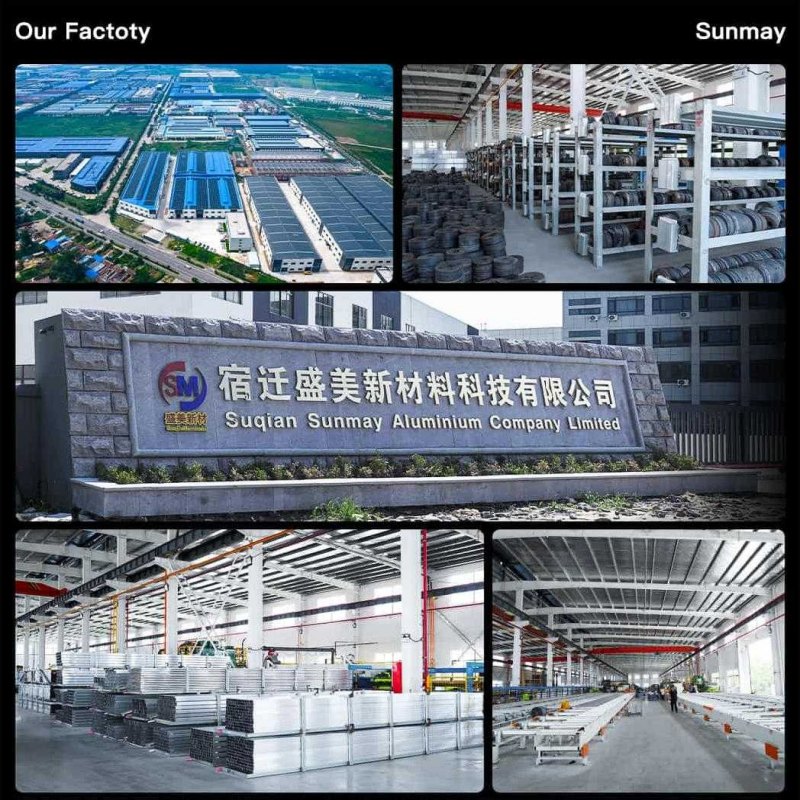

We Sunmay supply raw materials to an online vertical anodizing line and two robotic powder spray booths, and then black anodize aluminum profiles. Each billet lot is tracked via QR code from furnace to packing crate, guaranteeing traceability. Daily SPC charts govern dimensional and colour consistency, while a climate‑controlled lab executes adhesion, impact, gloss and salt‑fog tests. Quality system accreditation includes ISO 9001, CE, SGS RoHS and IATF‑16949 for selective automotive programs. Third‑party audits welcome. Video tours and live virtual inspections are available on request.
For standard architectural loads, 6063‑T5 is sufficient. Where higher mechanical strength is needed, we offer 6005‑T6 or 6061‑T6 with identical black anodized finishing.
Yes, gloss levels from 10 GU (deep matte) to 85 GU (high gloss) are achievable through powder formula adjustment. Our lab will send coated swatches for approval.
Prototype MOQ starts at 30 kg per size; regular production MOQ is 500 kg. Mixed‑size consolidation is welcome.
Die fabrication: 7–10 days → Trial run & sample: 5 days → Mass production: 10–15 days. Rush service is available.
Absolutely. We offer CNC, tapping, deburring and kit‑packing with barcodes, ready for assembly lines.
Our powder is TGIC‑free and heavy‑metal‑free, complying with RoHS and REACH. Anodizing wastewater is recycled through ion‑exchange and RO systems.
We provide anodic film thickness, coating thickness, adhesion (cross‑hatch), salt‑spray, hardness and color ΔE data with each shipment.
Yes. On‑site audits and remote live video inspections are both available by appointment.
