Which Type of Aluminum Profile Is Best for Windows?

The Importance of Aluminum Profiles in Window Manufacturing

In modern architecture, windows are more than just channels for light and ventilation—they are essential components that define both the appearance and performance of a building. At the heart of high-quality window construction lies the aluminum profile. The strength, thermal performance, and sealing capabilities of a window are directly influenced by the properties of the aluminum profile used. Choosing the right aluminum profile is like laying a solid foundation for the window system. It plays a vital role in improving indoor comfort, extending the window’s service life, and enhancing the overall value of the building. In this article, we’ll take a closer look at the various types of aluminum profiles available, helping you identify the ideal option for your specific window needs.

Types of Aluminum Profiles: A Technical Overview

By Manufacturing Process

The performance and application of aluminum profiles are largely determined by how they are made. From a manufacturing perspective, aluminum profiles are generally categorized into two types: extruded and cast. Extruded aluminum profiles are formed by heating aluminum billets to a specific temperature and then forcing them through a precision die using high pressure. This method produces profiles with excellent dimensional accuracy and a smooth surface finish. More importantly, because the metal grain flow remains continuous, these profiles exhibit superior strength, toughness, and structural integrity. For this reason, extruded profiles are widely used in the production of window systems.

In contrast, cast aluminum profiles are created by pouring molten aluminum into a mold cavity, where it cools and solidifies into shape. This process is better suited for producing parts with complex shapes and internal structures—such as automotive engine blocks. However, due to certain limitations in production efficiency, surface quality, and dimensional precision, cast aluminum is rarely used in the window industry. Considering that windows must perform multiple functions—such as load-bearing, wind resistance, and thermal insulation—extruded aluminum profiles made from 6063-T5 or 6063-T6 alloys are generally preferred. As part of the Al-Mg-Si alloy family, 6063 aluminum is known for its excellent extrusion performance and strong anodizing capability. After undergoing heat treatments such as T5 (air-cooled and naturally aged) or T6 (water-cooled and artificially aged), the alloy's tensile strength, hardness, and corrosion resistance improve significantly.

• T5 profiles offer moderate strength, making them ideal for standard residential windows.
• T6 profiles are stronger and better suited for high-rise buildings, coastal regions with strong winds, or any setting where superior wind resistance is essential.

Additionally, these profiles can be fitted with thermal break strips to form "broken bridge" (thermal break) structures. This significantly reduces thermal conductivity, improving energy efficiency and meeting the increasingly strict insulation requirements of modern architecture.

By Structural Design: Solid, Hollow, and Multi-Chamber Aluminum Profiles

Aluminum profiles can also be categorized based on their structural design—primarily into solid profiles, hollow profiles, and multi-chamber profiles. Each type serves distinct purposes depending on the specific demands of the project. Solid aluminum profiles are extruded from a full aluminum billet, featuring a dense, non-hollow cross-section. Thanks to their robust structure, they offer excellent performance in terms of load-bearing and wind pressure resistance. These profiles are often used in large curtain wall systems or industrial-grade windows and doors where maximum structural strength is essential. However, the downside is their heavy weight and high material consumption, which not only increases transportation and installation costs but also requires more advanced equipment and labor. Combined with the higher price of raw aluminum, solid profiles are generally more expensive on the market.

Hollow aluminum profiles, on the other hand, are designed with one or more hollow sections during the extrusion process. This significantly reduces their overall weight, making them easier to handle during manufacturing and installation. Their lightweight nature allows for more efficient cutting, bending, and surface treatment, while also lowering installation labor and equipment requirements. For this reason, hollow profiles are widely used in residential window systems, where cost-efficiency and ease of installation are top priorities. Multi-chamber profiles represent a more advanced structural design, increasingly favored in energy-efficient buildings. These profiles feature multiple strategically designed internal cavities that can be filled with insulation materials such as PA66 thermal breaks or acoustic cotton. The design not only takes advantage of air’s natural insulating and sound-dampening properties, but also allows the window to meet or exceed national energy-efficiency standards.

For example, a multi-chamber aluminum profile equipped with PA66 thermal breaks can reduce heat transfer by over 60%. When paired with double-glazed units, these profiles significantly enhance thermal insulation, helping to reduce heating and cooling costs in both cold northern climates and hot southern regions. The multi-chamber structure also disrupts sound transmission pathways, offering a quieter and more comfortable indoor environment. In summary, the ideal aluminum profile structure depends heavily on the intended application. Whether the goal is structural strength, ease of installation, or energy efficiency, there’s a profile type tailored to meet those needs.

Surface Treatment Options for Aluminum Profiles

In addition to structural and alloy classifications, aluminum profiles can undergo various surface treatments to enhance their durability, appearance, and resistance to environmental factors. The most common methods include spray coating, anodizing, and powder coating—each offering distinct advantages depending on the application.

• Spray Coating
This method involves applying liquid paint onto the surface of the aluminum using spray guns or centrifugal atomizers, which disperse the paint into fine, even droplets. Spray coating allows for a wide range of color options, from timeless shades like black, white, and gray to more vibrant tones like candy red, and even special finishes that mimic wood grain or natural stone. This versatility makes it ideal for matching various architectural styles—whether minimalist modern, European classical, or neo-Chinese design. However, because the coating is relatively thin, it may offer limited abrasion resistance in high-friction environments.

• Anodizing
Anodizing is an electrochemical process that forms a dense aluminum oxide layer on the surface of the profile. This oxide layer significantly enhances surface hardness—reaching around HV300—and provides excellent protection against scratches and impact. Moreover, the anodized layer is tightly bonded to the base metal, offering superior corrosion resistance, even in coastal areas with high salt content or heavily polluted industrial zones. Anodized profiles feature a distinctive metallic sheen and refined texture, though color choices are generally limited to classic tones such as silver, champagne, or bronze.

• Powder Coating
In this process, powdered paint is evenly sprayed onto the aluminum surface and then cured in a high-temperature oven. The result is a thick, durable coating—typically between 60 and 120 microns—that offers outstanding resistance to wear, UV radiation, acid rain, and sand abrasion. Powder-coated aluminum maintains vibrant color and surface smoothness even under extreme weather conditions. Thanks to its resilience, this finish significantly reduces long-term maintenance costs and helps the window frame retain its appearance for years.

Key Performance Indicators of Aluminum Profiles for Windows

Strength and Durability
Windows serve as critical components of a building’s envelope, enduring long-term exposure to wind pressure, rain impact, and mechanical stresses from daily opening and closing. Therefore, the strength of aluminum profiles directly influences window safety and lifespan. Industrial standards often recommend 6063-T5 and 6063-T6 aluminum alloys, which—thanks to optimized heat treatments—offer tensile strengths of approximately 160 MPa and 205 MPa respectively. These alloys also incorporate elements like magnesium and silicon to refine grain structure, ensuring the profiles maintain structural integrity through frequent use and reducing the risk of deformation-induced sealing failures.

Corrosion Resistance
Outdoor aluminum profiles face continual exposure to acid rain, salt spray, and industrial pollutants. Coastal regions, with their high chloride concentrations, are particularly prone to aluminum pitting corrosion. Aluminum profiles treated by anodizing form a dense oxide layer with a thickness of at least 15 microns, significantly enhancing corrosion resistance. Meanwhile, fluorocarbon spray coatings create a tight layer of polyvinylidene fluoride (PVDF), offering weather resistance lasting over 25 years. This treatment protects against UV rays and chemical exposure, reduces maintenance costs, and prevents frame deformation or detachment caused by corrosion.

Thermal Insulation Performance
With increasingly stringent energy efficiency requirements, thermal performance has become a central criterion for aluminum profiles. Thermal break profiles use PA66 insulation strips to separate inner and outer aluminum layers, effectively blocking heat transfer. This reduces the overall window heat transfer coefficient (U-value) from around 6.0 W/(m²·K) for standard aluminum windows to below 2.0 W/(m²·K). Some high-end profiles also incorporate polyurethane foam fillers to further enhance insulation, minimizing indoor heat loss during winter and reducing air conditioning energy consumption in summer—meeting the demands of green building standards.

Structural Stability and Sealing Performance
A well-engineered chamber design within the profile is crucial for window stability. Multi-chamber profiles increase rigidity and evenly distribute stress, preventing deformation. Combined with EPDM rubber seals, stepped gasket designs, and equal-pressure chambers, windows can achieve water tightness rated at Level 6 (≥700 Pa) and air tightness rated at Level 8 (≤0.5 m³/(m·h)). These features significantly improve wind resistance, waterproofing, and sound insulation. Additionally, hidden drainage systems and precision sliding tracks ensure smooth operation while preventing rainwater infiltration.

Aesthetic Appeal and Workability
Surface treatments provide aluminum profiles with a rich variety of finishes. Anodizing imparts a metallic sheen, powder coating offers over 200 customizable colors, and wood grain transfer techniques realistically simulate natural wood textures—catering to diverse architectural styles. Excellent extrusion properties allow production of complex cross-sectional shapes, meeting demands for curved windows, folding windows, and other specialized designs. High-precision CNC machining ensures assembly tolerances within ±0.1 mm, enabling large-scale floor-to-ceiling windows and ultra-narrow frame minimalist designs favored in premium custom projects.

Common Types and Features of Aluminum Profiles for Windows

Thermal Break Aluminum Profiles (Heat-Insulated Aluminum Profiles)

Thermal break aluminum profiles are currently the most widely used high-performance material in window manufacturing. Their core innovation lies in the physical thermal break technology, where insulating materials or barrier layers are embedded within the aluminum profile’s chambers. The mainstream insulating materials include PA66 nylon thermal breaks and polyurethane foam:

• PA66 Thermal Break Strips: Made from polyamide 66 (PA66) reinforced with 25% glass fiber, these strips offer high strength, excellent heat resistance (melting point over 250°C), and aging resistance. Their thermal conductivity is only about 1/1250 that of aluminum alloy, effectively blocking heat transfer between indoor and outdoor environments.
• Polyurethane Foam: Injected under high pressure into the profile chambers and cured to form a closed-cell foam structure with over 92% closed porosity. This foam has a low thermal conductivity of 0.024 W/(m·K), not only blocking heat transfer but also significantly enhancing the overall rigidity of the profile.

This “hot-cold thermal break” design represents a revolutionary advancement in window and door energy-saving technology. By embedding PA66 thermal breaks in aluminum profiles, the physical thermal bridge is interrupted, reducing the window’s overall heat transfer coefficient (U-value) to below 1.8 W/(m²·K). This translates to more than 60% energy savings compared to standard aluminum windows, meeting high-performance standards for national building energy codes. Paired with a multi-chamber design, the window sash forms multiple sealed cavities acting as layered sound barriers, achieving tested noise reduction levels of over 35 dB. This effectively isolates external noise such as traffic and human chatter.

For waterproofing and airtightness, stepped drainage designs combined with EPDM (ethylene propylene diene monomer) rubber seals ensure airtightness levels reaching Level 8 under the GB/T 7107-2019 standard. This effectively protects against heavy rain and strong wind infiltration. Such high-performance aluminum systems are widely used in mid- to high-end residential buildings, commercial offices, star-rated hotels, and especially in energy retrofit projects for existing buildings—significantly improving indoor comfort while lowering energy consumption.

Advantages:

Thermal Insulation: The thermal break design dramatically reduces heat transfer, minimizing indoor heat loss in cold climates and blocking outdoor heat in hot regions, achieving remarkable energy savings.

Condensation Prevention: Excellent insulation prevents condensation and moisture buildup on window surfaces, protecting walls and indoor environments.

Corrosion Resistance: Typically finished with high-quality surface treatments, thermal break aluminum profiles also benefit from enhanced overall corrosion resistance due to their unique structure.

Applications:
Ideal for buildings with high energy-saving and thermal insulation requirements such as residential homes, office buildings, and commercial complexes—particularly suited for cold climates and places demanding superior indoor comfort.

Standard Industrial Aluminum Profiles

Standard industrial aluminum profiles are typically produced through extrusion, featuring simple geometric cross-sections such as rectangular or square shapes. Their production process is highly standardized, resulting in a significant cost advantage. With a tensile strength generally ranging between 150 and 200 MPa, these profiles can adequately support the weight and everyday mechanical stresses of common window types. However, due to relatively thin wall thicknesses (usually 1.2 to 1.5 mm) and the absence of special treatments, their wind resistance performance is limited to low-rise buildings. Surface treatment for this type of profile is often basic anodizing, which forms a protective oxide layer. Compared to the multi-layer coatings on thermal break aluminum, anodized industrial profiles offer weaker resistance to acid and alkali corrosion. Long-term exposure to coastal high-salinity environments or industrial pollution can cause oxidation spots to appear.

Additionally, standard industrial aluminum profiles lack insulated chamber designs, resulting in a high thermal conductivity of about 200 to 240 W/(m·K). This leads to significant indoor heat loss in winter and increased air conditioning energy consumption in summer.

Suitable Applications:
These profiles are ideal for budget-conscious construction projects such as rural self-built houses, temporary modular buildings, and economical factories or warehouses where cost control is critical. However, they are not recommended for buildings with strict energy efficiency standards or where high requirements for soundproofing and waterproofing are necessary, such as residential and commercial properties.

High-Strength Alloy Aluminum Profiles

High-strength alloy aluminum profiles achieve tensile strengths 2 to 3 times greater than standard aluminum by incorporating alloying elements such as magnesium, silicon, and copper. With a Vickers hardness exceeding 100 HV, their unique molecular structure forms a dense crystalline lattice that maintains lightweight characteristics while withstanding wind loads up to 5000 Pa—equivalent to the destructive force of a Category 17 super typhoon. After anodizing, the profiles develop a protective oxide layer thicker than 20 μm, effectively resisting corrosive environments such as acid rain and salt spray, and extending their service life beyond 30 years.

Suitable Applications:
These profiles are ideal for large-scale public buildings’ glass curtain wall systems and expansive window designs like floor-to-ceiling and corner windows in high-rise residential towers. For instance, in coastal high-rise structures, high-strength alloy aluminum profiles provide excellent resistance against strong winds, ensuring window structural stability. In panoramic skylight projects for commercial complexes, their superior load-bearing capacity supports large glass panels while meeting both daylighting and safety requirements. Additionally, in earthquake-prone regions, their high toughness enables effective absorption of seismic energy, reducing the risk of structural damage.

Special-Function Aluminum Profiles

With the growing demand for multifunctionality in modern architecture, special-function aluminum profiles have emerged to provide customized solutions for specific applications. Fire-Resistant Aluminum Profiles utilize composite flame-retardant materials and honeycomb chamber designs. By incorporating nano-scale flame retardants and high-temperature resistant coatings, these profiles maintain structural integrity for over 120 minutes at temperatures up to 800°C. Their surfaces are anodized to form dense oxide films, combined with internal thermal insulation strips and fireproof sealing gaskets, effectively blocking heat transfer. In facilities with stringent fire safety requirements—such as hospitals and data centers—these profiles comply with the GB 8624-2012 classification for building material combustibility and can integrate with automatic sprinkler systems to significantly enhance overall fire protection levels.

Noise-Reducing Aluminum Profiles are innovatively designed based on acoustic principles. Their multi-layer chamber structures feature uneven spacing, paired with double-glazed insulated glass and EPDM composite sealing strips, achieving external noise reduction of 35 to 45 decibels. Surface sound-absorbing grooves further scatter sound wave reflections, while thermal break technology minimizes vibration transmission. In residential buildings near airports, high-speed rail lines, or busy urban arteries, these profiles help maintain indoor noise levels below 40 decibels, meeting high standards specified in the “Code for Sound Insulation Design of Civil Buildings.” This creates peaceful living and working environments for occupants.

By deeply integrating materials science with structural engineering, these special-function aluminum profiles meet the rigorous performance demands of diverse building scenarios. They are especially suited for spaces requiring high safety and comfort standards, including hospital operating rooms, school classrooms, and airport VIP lounges.

Key Considerations When Selecting Aluminum Profiles for Windows

Choosing the right aluminum profile is essential to ensure the overall performance, durability, and energy efficiency of your window system. Here are the key factors to consider:

1. Type of Window

Different window types demand different structural and mechanical characteristics from the aluminum profiles:

1. Sliding Windows: These rely on rollers and tracks for smooth operation. Profiles with a wall thickness ≥ 1.4 mm and track slot tolerance within ±0.2 mm are ideal. Pair with PA66 wear-resistant rollers to ensure long-term smooth movement. Reinforced chambers help improve lateral wind pressure resistance.
2. Casement (Swing) Windows: These are hinge-supported and require multi-chamber thermal break profiles with key stress-bearing sections at ≥ 2.0 mm wall thickness. Use hidden hinges (load capacity ≥ 80 kg) and EPDM sealing strips for multi-layer sealing to prevent water infiltration.
3. Fixed Windows: While they don’t open, they must still balance aesthetics and strength. Slim-line profiles are common, often reinforced with internal ribs or steel reinforcements to enhance structural rigidity.

2. Climatic Conditions

Environmental exposure greatly impacts the performance and lifespan of aluminum windows. Regional climate considerations include:

1. Coastal High-Salinity Areas: Use PVDF or ceramic coating (≥ 40μm thickness) to resist chloride corrosion. Opt for 6063-T5 alloy with low impurity content (<0.1% Cu/Fe) for up to 3x improved corrosion resistance.
2. Cold Regions: Choose thermal break profiles with PA66 insulating bars ≥ 24mm, combined with double-glazed Low-E glass filled with argon. These configurations can reduce the overall K-value to ≤ 1.8 W/(m²·K) and minimize indoor heat loss.
3. Hot & Humid Regions: Profiles with reflective coatings (solar reflectance ≥ 65%) help lower surface temperatures. Ensure drainage design is optimized to prevent water accumulation and overflow.

3. Budget Constraints

Aluminum profile pricing varies based on alloy type, surface treatment, and processing. Select based on performance needs and budget:

1. Economical Option: 6061-T6 industrial profiles, 1.2 mm wall thickness with anodized finish, priced around ¥20,000/ton, suitable for temporary buildings or low-budget renovations.
2. Mid-Range Option: Thermal break profiles with PA66 strips + powder coating, priced at approx. ¥35,000/ton, offering basic energy efficiency and over 10 years of durability.
3. High-End Customization: Use aerospace-grade 7075-T6 alloy with fluorocarbon coating and smart insulation systems, priced over ¥60,000/ton, ideal for luxury buildings or passive house projects.

4. Architectural Style & Design Requirements

Aluminum profiles should align with the building’s aesthetics and functional goals:

1. Modern Minimalist Designs: Use ultra-slim frames (visible width ≤ 35 mm) with concealed drainage holes and flush hardware, creating a sleek, contemporary look.
2. Classical Renovation Projects: Utilize wood-grain transfer printing (at 200–220°C) to replicate a natural wood finish. Combine with decorative grille inserts for a blend of tradition and modern performance.
3. Special Shapes: For curved or irregular window designs, custom extrusion with mold development is required. Apply finite element analysis to ensure strength and style are both optimized.

5. Energy Efficiency Requirements

With the enforcement of the “General Code for Energy Conservation and Renewable Energy Use in Buildings”, window systems must adopt integrated energy-saving strategies:

1. Profile Structure Optimization: Choose three- or five-chamber thermal break systems to interrupt heat flow. Pair with warm-edge spacers to reduce edge heat loss.
2. Smart Energy Systems: Integrate motorized blinds, automated temperature control vents, and other intelligent components to manage solar shading, insulation, and airflow—helping meet China’s Green Building 3-Star Certification standards.
3. Certifications & Testing: Use profiles certified by the China Construction Metal Structure Association, ensuring full-window air tightness rating ≥ Class 8 and water tightness ≥ Class 6.

Recommended Aluminum Profile Brands and Suppliers in the Market

When it comes to high-performance window aluminum profiles, several reputable domestic and international brands stand out for their product quality, innovation, and service. Shengxin is a trusted name in the aluminum profile industry with over two decades of experience. Backed by a national-level R&D center, Shengxin has developed multiple patented technologies in areas such as thermal break profiles and smart window frame systems. Its products meet the highest standards of GB/T 8478-2020 for aluminum windows, capable of withstanding Category 12 typhoons and extreme temperatures as low as -40°C. Certified by both ISO 9001 Quality Management and China Environmental Labeling, Shengxin also offers a nationwide 72-hour service response system, providing end-to-end support from design consultation to installation and after-sales maintenance.

Sunmay, on the other hand, is known for its strong focus on sustainability. Up to 70% of its aluminum materials are recycled, reducing environmental impact without compromising on strength. The company adopts advanced German surface treatment technology, tripling the weather resistance of its profiles and offering strong protection against acid rain and UV exposure. Sunmay has developed a proprietary five-dimensional testing system—covering everything from chemical composition analysis to salt spray testing—to ensure every profile meets aerospace-grade standards. It has also been recognized as China's Top Window & Curtain Wall Brand for ten consecutive years.

When evaluating potential suppliers, it’s crucial to verify that they possess a valid industrial production license and to cross-check their test reports on the official website of the National Building Materials Testing Center. In addition, look for real-world applications in similar climatic conditions and long-term performance feedback—such as profile deformation rates and sealing efficiency—from existing clients. Partnering with suppliers that offer comprehensive after-sales support can make a significant difference. This includes professional assistance with on-site measurement, structural design, installation, and long-term maintenance. During installation, proper alignment, secure fastening, and the use of quality sealing strips are essential to prevent issues like air and water leakage. It's also important to seal gaps between the window frame and wall with appropriate filler materials to ensure long-term stability and insulation.

For long-term reliability, regular maintenance is recommended—such as cleaning the window frames, checking for worn-out seals, and tightening any loose hardware. Proactive upkeep can significantly extend the service life of aluminum window systems and maintain optimal performance.

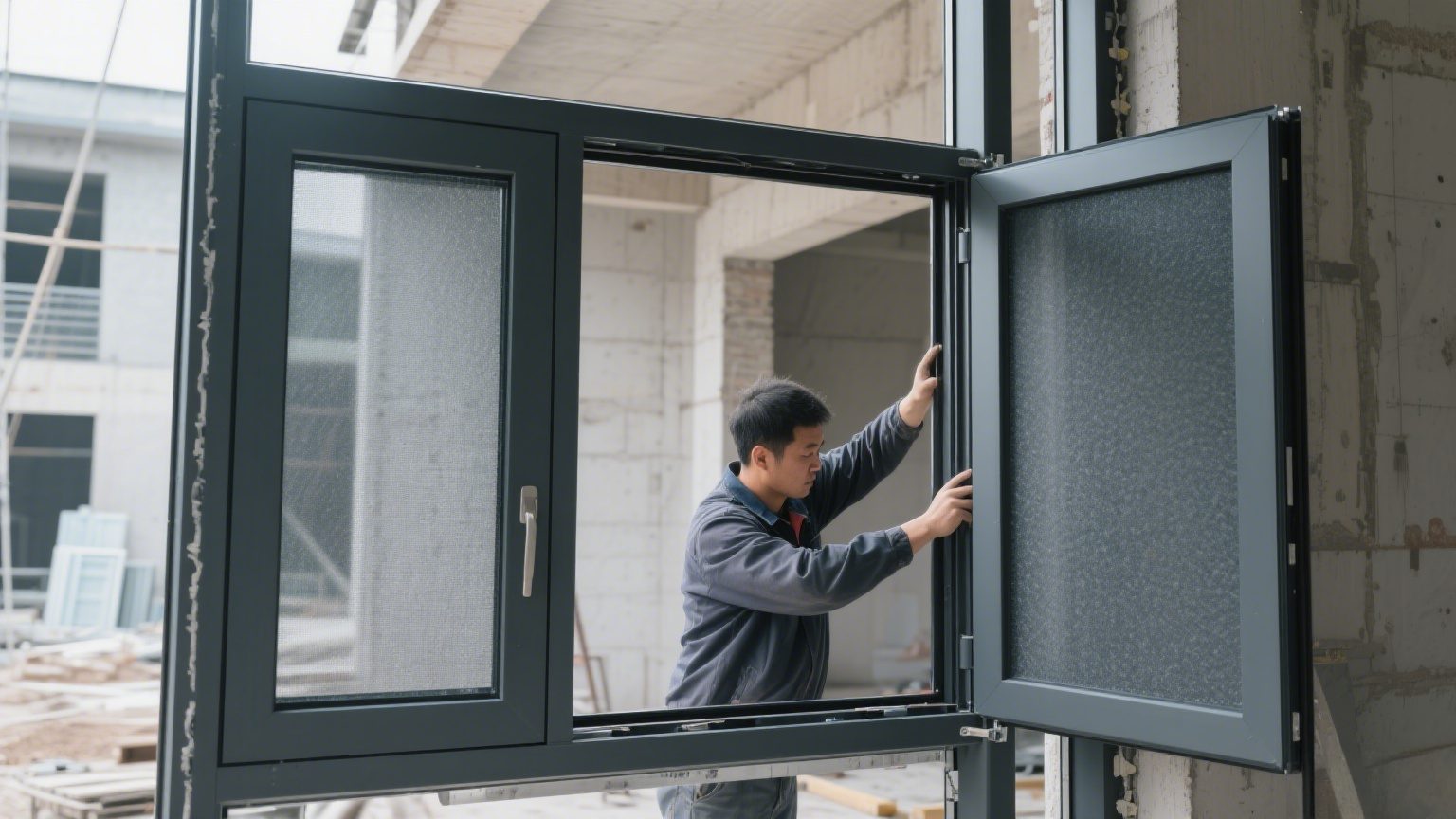

Ensuring Proper Installation of Aluminum Window Profiles

Beyond Materials: The Critical Role of Installation

While selecting high-quality aluminum profiles is crucial, proper installation is equally vital in determining a window’s long-term performance and durability. Precision in cutting and fitting must be maintained throughout the process, with dimensional deviations kept to a minimum. Any mismatch can compromise structural integrity and reduce sealing effectiveness. During installation, it’s essential to use matching, high-grade hardware—such as stainless steel screws and corner brackets—to strengthen joints and ensure stable framing.

In addition, the correct application of sealing strips is a major factor in protecting against wind, rain, and outside noise. Without skilled installation, even premium aluminum profiles may suffer from issues such as leaks, distortion, or poor insulation. That's why working with experienced professionals who follow standardized procedures is key to achieving optimal window performance.

Installation Guidelines and Common Pitfalls

Key Installation Tips

Accurate Measurement: Prior to installation, take multiple precise measurements to ensure frame dimensions fall within a ±2mm tolerance. Use laser rangefinders and leveling instruments to establish accurate reference lines.

Profile Protection: During transport and handling, aluminum profiles should remain wrapped in protective film to avoid scratches or surface damage. After cutting, all exposed ends must be sealed with silicone to prevent moisture ingress and corrosion inside the cavity.

Sealing and Caulking: Use weather-resistant silicone sealant at joint seams and wall junctions to guarantee airtight and watertight performance. Choose sealants that match the profile color for a cohesive look and functional durability.

Hardware Compatibility: Match hinges, locks, and fasteners to the profile’s groove specifications. Avoid forcing incompatible parts, which can distort the frame. Periodically inspect and tighten all hardware to ensure continued stability.

Common Installation Issues & Solutions

Profile Warping: Warping or dents often result from transportation damage or uneven pressure during installation. Replace any compromised sections and ensure distributed support during mounting to prevent point-loading.

Air or Water Leakage: Check for cracked or aged sealing strips and replace them with EPDM rubber gaskets. If large gaps exist between the frame and wall, fill with PU foam insulation before applying a finishing sealant bead.

Sticky Operation: Clean debris from sliding tracks and apply lubricant to rollers or hinges. If hinges become loose, use a torque wrench to re-tighten to standard specifications.

Maintenance and Long-Term Care Tips

Routine Cleaning: Clean window frames monthly using a soft cloth and neutral detergent to remove dust and grime. Avoid abrasive tools that could scratch the protective oxide layer. Rinse thoroughly with clean water and dry to prevent water stains.

Hardware Maintenance: Every 3 months, inspect hinges, handles, and locking mechanisms. Tighten any loose screws, and lubricate moving parts such as rollers and pivots to reduce wear and extend service life.

Oxide Film Repair: For minor surface scratches on the anodized layer, use specialized aluminum repair agents. In cases of more severe damage, consult a technician for part replacement to maintain aesthetics and corrosion resistance.

Extreme Weather Response: After severe storms or strong winds, inspect the frame for misalignment or deformation. Reinforce affected areas if needed, and check sealing strips for signs of aging or detachment to maintain airtightness.

Conclusion

Overall, thermal break aluminum profiles have become the preferred choice for most building windows, thanks to their outstanding performance in insulation, condensation resistance, and corrosion protection. By using PA66 nylon insulation strips to separate and connect the inner and outer aluminum layers, this “thermal break” structure effectively blocks heat transfer—keeping interiors warmer in winter and cooler in summer. This makes them especially suitable for environments where thermal comfort and energy efficiency are top priorities, such as residential homes, office buildings, and healthcare facilities.

In contrast, standard industrial aluminum profiles stand out for their cost-effectiveness. While they may not offer the same level of thermal performance, they are widely used in budget-conscious projects—such as rural homes, temporary housing, and warehouses—where basic functionality is sufficient and energy efficiency is not a primary concern. For high-rise buildings, coastal projects, or large commercial structures where windows face significant wind pressure and structural stress, high-strength aluminum alloy profiles are the go-to solution. With enhanced mechanical properties from added magnesium, silicon, and copper, these profiles offer superior load-bearing capacity and structural integrity under extreme weather conditions, making them ideal for applications such as curtain walls, panoramic windows, and wind-resistant facades.

Meanwhile, special-purpose aluminum profiles are designed to meet unique functional demands. For instance, sound-insulated profiles with multi-layer cavities are ideal for buildings near airports or highways. Antibacterial-coated aluminum is often used in hospitals and schools where hygiene is critical. And for high-rise buildings where cleaning is a challenge, self-cleaning coated profiles can reduce long-term maintenance costs. As a trusted name in the aluminum industry, Shengxin Aluminum offers a comprehensive range of products—from entry-level solutions to fully customized high-end systems. The company provides one-stop services that cover material selection, structural design, and precision fabrication, ensuring each project gets the right fit. When selecting aluminum profiles for your windows, it's important to consider factors such as the type of window (e.g., casement, sliding), local climate (e.g., extreme cold, heat, or humidity), project budget, architectural style (e.g., minimalist modern or classical), and overall energy-saving goals. We hope this guide helps you make a more informed choice and build windows that are not only durable and efficient—but also a perfect match for your project’s design and performance needs.

Frequently Asked Questions (FAQ)

Q1: What is a thermal break aluminum profile, and why is it suitable for windows?
A1: A thermal break aluminum profile features an insulating barrier (typically PA66 nylon or polyurethane) between the inner and outer aluminum layers. This structure significantly reduces heat transfer, improves energy efficiency, and prevents condensation—making it ideal for windows in buildings with insulation and energy-saving needs.

Q2: What’s the difference between regular aluminum profiles and thermal break profiles?
A2: Regular aluminum profiles have a simple structure and high thermal conductivity, offering minimal insulation. Thermal break profiles, on the other hand, are designed with a heat-insulating layer that enhances thermal and sound insulation, making them more suitable for energy-efficient buildings.

Q3: How should I choose aluminum profiles based on climate conditions?
A3: In humid or coastal areas, choose profiles with strong corrosion resistance (e.g., fluorocarbon-coated aluminum). In cold climates, thermal break profiles are recommended for better insulation. For hot regions, look for profiles with heat-reflective coatings and enhanced thermal barriers.

Q4: What is the typical lifespan of aluminum window profiles?
A4: High-quality aluminum window systems can last over 20 years with proper maintenance. They are resistant to corrosion and weathering, making them a durable choice for long-term use.

Q5: What should be considered during the installation of aluminum windows?
A5: Ensure accurate measurements and level installation to maintain airtightness and prevent water leakage. Use compatible hardware and professional installers to optimize performance. Regular inspection and maintenance can further extend the window’s service life.
